Quick Details

  • Place of Origin: Shaanxi, China (Mainland)
  • Brand Name: China GX
  • Model Number: GXUS-M56
  • Range: 0.05~0.5m, 0.1~1m, 0.2~3m, 0.3~5m, 0.5~6m
  • Analog output: 4~20mA/500Ω LOADING
  • Switch output: RELAY DC 30V/ 5A , PNP/NPN(OPTIONAL)
  • Power supply: Standard 24VDC

Packaging & Delivery

Packaging Details Carton or customers requests available

LED  display  digital rs485 rs232 ultrasonic distance level sensor

Product introduction

 Introduction of digital ultrasonic sensor

The Ultrasonic sensor uses sound waves to do non-contact and wear-free detection on target subjects. It can be used to detect either transparent or colored objects, metal objects or non-metallic objects, as well as solid, liquid or powdered substance. Ambient conditions such as environmental smoke, dust, environment or rain have very small affect on the detection performance of ultrasonic sensors

Features

 Features of ultrasonic distance sensor

  • High resolutionShort response time
  • Digital tube display measuring distance
  • Various springs available: switch, analog, or RS232/485

 Parameter of ultrasonic level sensor

Parameter

Range

0.05~0.5m,0.1~1m,0.2~3m,0.3~5m,0.5~6m

Resolution

3mm or 0.1%(which is bigger)

Response time

< 200ms

Display

LED (OPTIONAL)

Emission angle

20°

Analog output

4~20mA/500Ω LOADING

Switch output

RELAY DC 30V/ 5A , PNP/NPN(OPTIONAL)

RS232/485

MODBUS protocol or customized protocol (optional)

Power supply

Standard 24VDC (±15%)

Ambient temperature

-20~+60°C



Protection Class

IP65 (IP66 is selectable)

Installation

M56*2

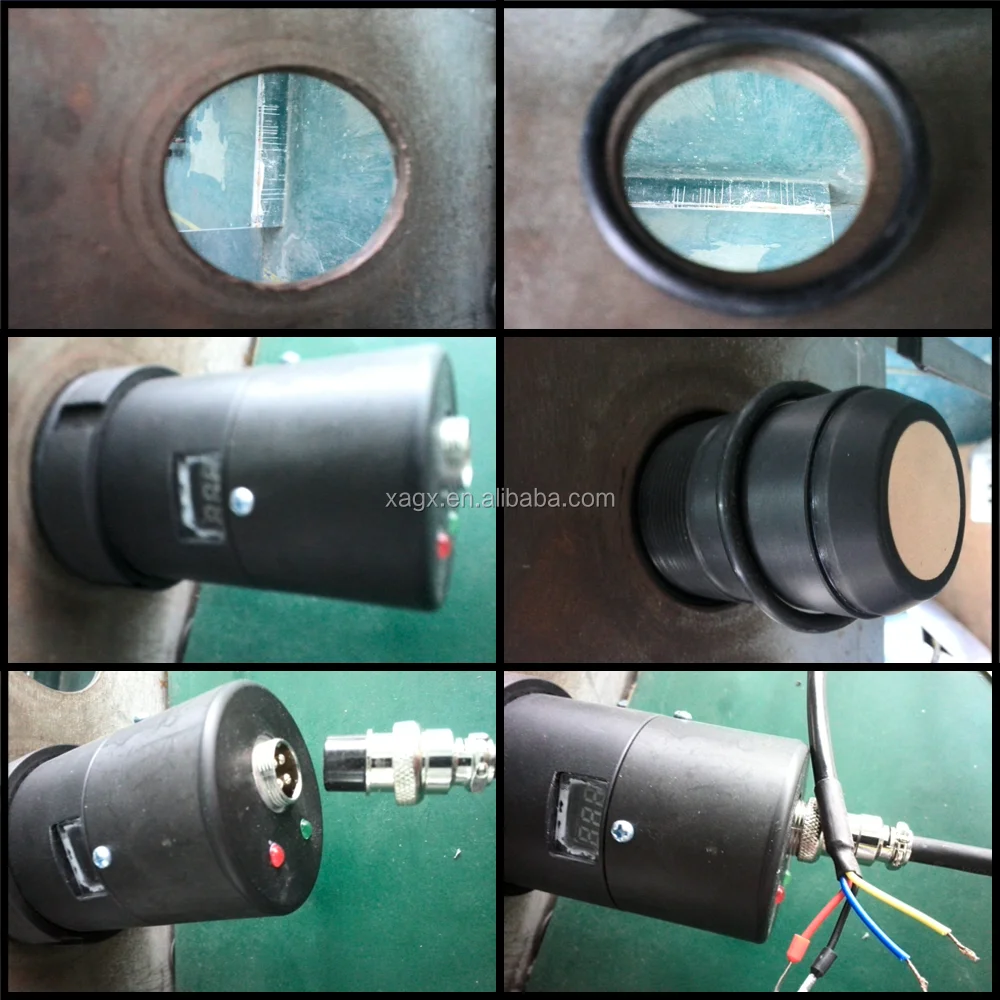

Installation
Related products



Our Services

Our Services

Sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.

After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.

Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
